Description

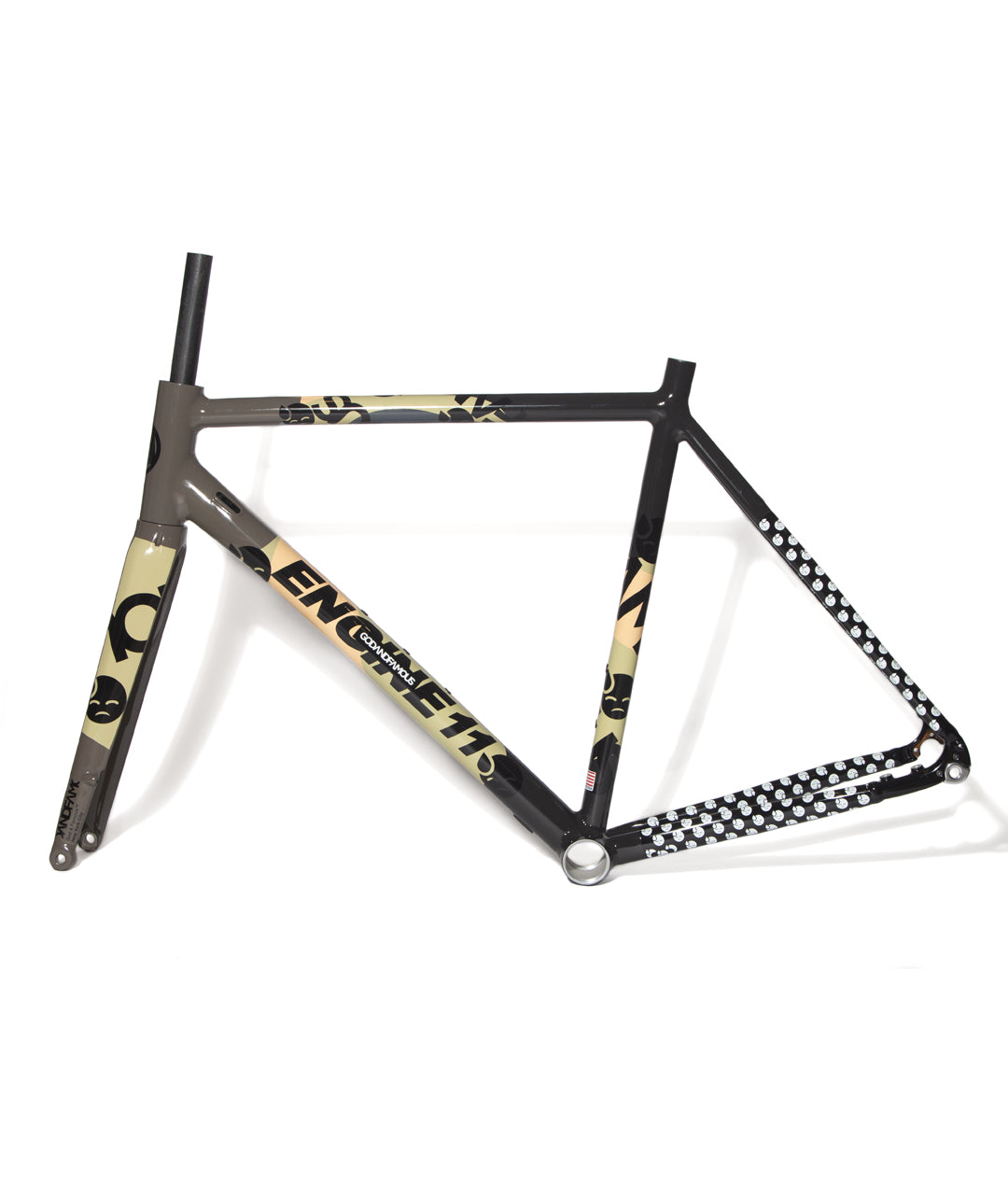

fahrradrahmen anglais G&F/E11 Road Disc FramesetThis pain is yours. Cycling is one of those interesting things that sits between the physical and the mental. It's where solitude can be sanctuary and your legs become the engine. It's where the journey is just as important as the destination and everyone must own their own pain. A limited release designed by God & Famous in New York City in collaboration with Los Angeles based bicycle company Engine 11. *Sold as Frameset only; includes Frame, Fork,
This pain is yours.
Cycling is one of those interesting things that sits between the physical and the mental. It's where solitude can be sanctuary and your legs become the engine. It's where the journey is just as important as the destination and everyone must own their own pain.
A limited release designed by God & Famous in New York City in collaboration with Los Angeles based bicycle company Engine 11.
*Sold as Frameset only; includes Frame, Fork, Headset, Seat Post Clamp and Thru Axles (front & rear).
Features
✔ 700c
✔ Frame: 6069 Triple Butted Aluminum
✔ Fork: Full Carbon 1 1/8-1.5"
✔ Head Tube: 44mm straight
✔ Bottom Bracket: T47 (86mm)
✔ Seatpost: 27.2
✔ Seat Collar: 31.8
✔ Front/Rear Brake: Flat Mount Disc (160mm Max Rotor)
✔ Front/Rear Axle: M12
✔ Hub Spacing: 12x100mm (front) & 12x142mm (rear)
✔ Max Tire Clearance: 700x28c
✔ Weight: Frame 1590g (Size 50cm) / Fork 390g
❢ Headset, Seat Post Clamp and Thru Axles (front & rear) are included
Frame Chart
Frame Specs
|
Size |
S |
M |
L |
XL |
Frame Chart |
| Frame Size | 51cm | 53cm | 56cm | 58cm | |
| Seat Tube (CT) | 510mm | 535mm | 560mm | 585mm | A |
| Head Tube Length | 125mm | 140mm | 155mm | 170mm | B |
|
Top Tube Length (Effective) |
530mm | 545mm | 560mm | 580mm | C |
| Front Center | 584.6mm | 590.4mm | 595.6mm | 630.6mm | D |
| BB Drop | 68mm | 68mm | 68mm | 68mm | E |
| Wheel Base | 985mm | 990.8mm | 996.1mm | 1011.1mm | F |
| Fork Offset | 45 | 45 | 45 | 45 | G |
| Fork Length | 380mm | 380mm | 380mm | 380mm | H |
| Chain Stay | 410mm | 410mm | 410mm | 410mm | I |
| Head Tube Angle | 72º | 72.5º | 73º | 73.5º | J |
| Seat Tube Angle | 74.5º | 74º | 73.5º | 73.5º | K |
| Reach | 381.8mm | 387.2mm | 392.2mm | 407.4mm | L |
| Stack | 534.4mm | 550.4mm | 566.5mm | 582.6mm | M |
Pictured Build Specs 🔍
✔ Frame Size: S 51cm
✔ Wheels: Honey Wheel Co. 700c Carbon Disc Wheelset
✔ Tires: Vittoria Corsa Control Tubeless - 700x25
✔ Drivetrain: Token DUB T47 Bottom Bracket (modified)
✔ Group: SRAM Red AXS 12-Speed
✔ Brakes: Yokozuna Hydro/Mechanical Disc Brakes
✔ Handlebar: Easton Carbon EC70 40cm
✔ Saddle: Selle Italia SLR
Full build by Tijon Randall (@paristicker) of @tuned.by.
⚠️ Framesets will be sold exclusively to the continental US only. All sales are final. No discounts or codes. Check Engine11 for worldwide availability.
